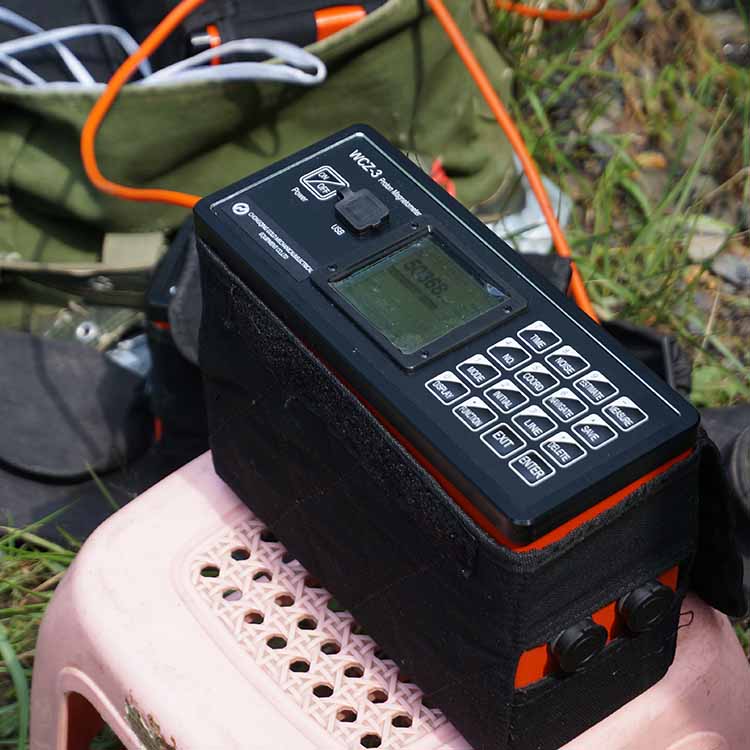

Ore Prospector Geophysical Digital Software Proton Magnetometer

Main Features:

Introduction

proton magnetic detector is a highly sensitive weak magnetism measurement meter, which applies the theory of proton magnetic moment revolving freely in geomagnetism. It is widely used in the observation of total geomagnetic field, including ground magnetic exploration of department like geology, oil, metallurgy and coal etc., surface base station of navigation and ocean magnetic measurement, magnetic variation observation of geomagnetic observatory in earthquake predict work.

Application

1. Mineral prospecting, such as iron ore, lead-zinc, copper mine. 2. Cooperative mine prospecting, study, the ore body`s burial depth, dipping and continuity, study the ore body`s shape, size, estimate mineral bed`s scale. 3. Prospecting for gas or oil, research geologic structure relevant to gas or oil. 4. Geologic survey, geologic mapping. 5. Ground diurnal variation for aero-magnetic and marine magnetic survey. 6. Faults orientation. 7. Archaeology. 8. Hydrology. 9. Engineering prospecting, e.g, pipeline finding. 10. Earthquake monitoring, volcano monitoring, and other environmental and disaster. 11. Small ferromagnetic objects finding.

Feature

1. The host has built-in GPS antenna and lithium battery module and GPS module. It is more convenient and reliable.

2. Rapid measurement - just 2 seconds from the start of the measurement to the display reading.

3. Full automatic tuning range, also can be manual tuning.

4. Perfect way of GPS navigation function: support text files into line and the coordinates of each point can be measured through the preset line endpoint, the coordinates of the instrument is calculated for each measuring point coordinates.

5. Mass data storage - hold in every measurement point magnetic field measurements, the coordinates of measuring points, elevation, and the information such as time, environment temperature, the data can be stored up to 2 million points.

6. Light weight and portable - the system uses backpack straps, one person can complete all the measurement task.

7. Standard software can draw isoline map, section and track diagram etc. It can also work on diurnal variation correction.

Technical Specifications

Geophysical Proton Magnetometer magnetometer metal detector

Data stored: 4005 (in daily variation method)

2670 (in manual method)

Working temperature: -20°C ~+50°C

Working humidity:≤90% (30°C)

Power source: lithium battery, 15.5V~16.8V/3.8Ah, work 10 hours continuously

Mainframe size: 210*80*200mm

Mainframe weight: 2kg

Probe size: 72*140mm

Probe weight: 1kg

Geophysical Proton Magnetometer magnetometer metal detector

Chongqing Gold Mechanical Electrical Equipment Co. Ltd. has been actively involved in the design, development, and manufacturing of geophysical exploration equipment for over four decades. Our expertise encompasses various techniques used to capture images and map subsurface features and structures such as minerals, oil and gas reservoirs, groundwater, and geological formations.

At present, our company manufactures a diverse range of equipment that encompasses resistivity meters, seismic receivers, magnetic instruments, borehole loggers, and various other geophysical sensors. Additionally, we offer geotechnical instruments such as pile testers and drilling machines.

In collaboration with geologists, geophysicists, and other domain experts, we design and develop instruments that cater to the unique requirements of our clients. To maintain our leading edge in the market and keep up with technological progress and scientific advancements, we continuously invest in research and development to ensure that our equipment is accurate, reliable, and efficient.
